Parameter Principle Test formats Measurement Read Time Test Time Specimen Power Supply
Dimension Screen size Weight Spectrum
Memory Ports Mains supply voltage fluctuations Overvoltage Category Pollution Degree of the intend environment Operating noise | Descriptions Fluorescence Immunoassay Cassette Quantitative, Qualitative <20s Ref: Analytes Ref: Specific Package Insert Lithium battery pack: 3.7 V 3000 mAh 11.1 Wh; Adapter Input: AC 100-240 V 50/60 Hz 0.5 A; Output: DC 5 V/3 A 141 mm*85 mm*45 mm (L*W*H) 4.3 inches 320g Excitation spectrum: Mean wavelength λ0=365nm Reception spectrum: Mean wavelength A1=610nm 10,000 records USBx1, Type-Cx1 ±10% II 2 ≤65dB (A) |
Product Features:

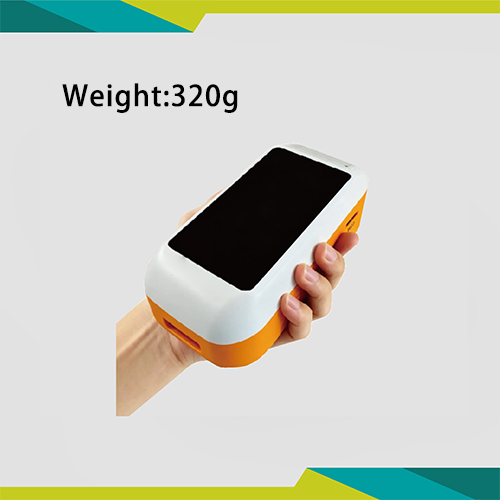

Palm-sized, lightweight and highly portable
Ultra-fast reading within 20 seconds
Large memory: up to 10,000 test records
User-friendly 4.3-inch touchscreen
Simple operation with quick & standard test modes
Multiple data output: USB, LIS, Bluetooth printer
