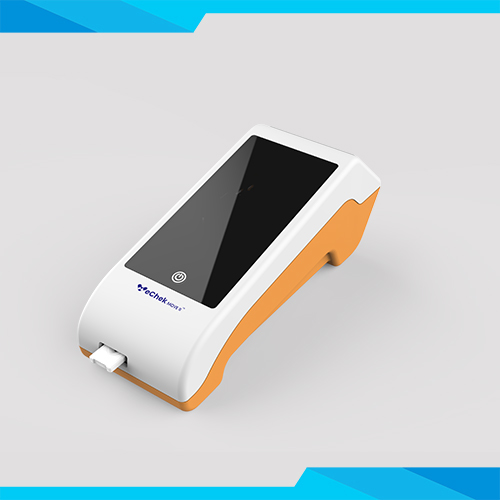

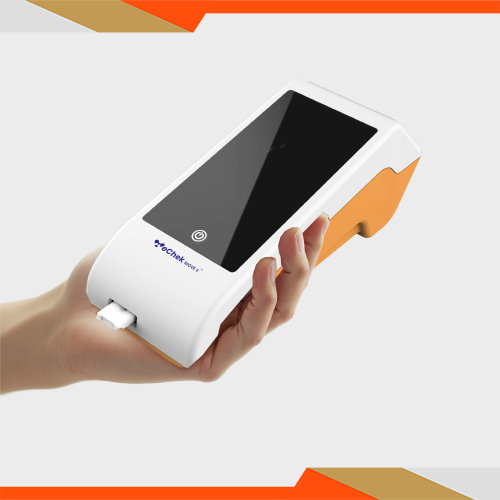

Fluorescence Immunoassay Analyzer

The Fluorescence Immunoassay Analyzer is an analyzer based on the detection of fluorescence emitted during immunoassay with antigen-antibody interactions. The analyzer is designed to provide quantitative or qualitative results by examining animal samples with specific test units. The Fluorescence immunoassay analyzer has the advantages of high accuracy, strong stability and fast results. The analyzer should only be used with tests manufactured by Hangzhou AllTest Biotech Co., Ltd. as per package insert provided with specific test kits. For veterinary use only. Please read this User Manual carefully before operation.

Product Features

PrincipleFluorescence Immunoassay
Advantages
Large Memory
High Accuracy
User-Friendly
Get Printing Test Reports Instantly
LIS Compatibility Available
Test formatsCassette
MeasurementQuantitative, Qualitative
Read Time< 20 seconds
Test TimeRef: Analytes
SpecimenRef: Specific Package Insert
Power SupplyDC 18V 2 A
Adapter InputAC 100-240V 50/60 Hz
Dimension275 mm*105 mm*100 mm (L*W*H)
Screen size5 inches
Weight1 kg
SpectrumExcitation spectrum: Mean wavelength λ0=365nm  Reception spectrum: Mean wavelength λ1=610nm
Memory10,000 records
PrinterBuilt-in thermal printer
PortsLAN×1, USB×1, Type-Cx1


Product Specification

  • FormatAnalyzer
  • Reading Time< 20 seconds
  • Storage Temperature5~45°C

Ordering Information

Cat. No. Product Specimen Pack Cut-Off
VFR-201 Fluorescence Immunoassay Analyzer -
